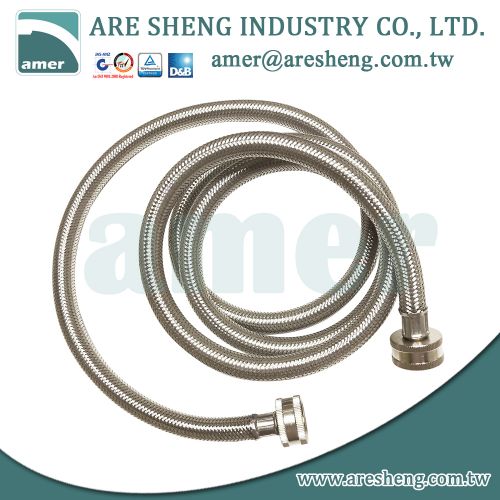

3/4"FH x 3/4"FH washing machine connector

Model No. 13A-022-34FH34FH
Category:Stainless steel braided connector
Tag:stainless steel supply line
Introduction
  • Description
  • Feature
  • Specification
Part No. 13A-022-34FH34FH

Product name: 304 Stainless steel braided washing machine connectors- Brass nut

Standard: 3/4" F.H. x 3/4" F.H. (female hose thread)

Available lengths: 10" - 60" (common sizes: 16", 20", 24")

Application: Connect washing machine to washing machine valve

washing machine valve - are sheng

Washing machine - 3/4"F.H. (outlet)

Washing machine valve - 3/4"F.H. (inlet)


Function: Supplying water to washing machine
 Material

- Wire: braided with stainless steel 304 wire (5 strings for a wire)

stainless steel wires

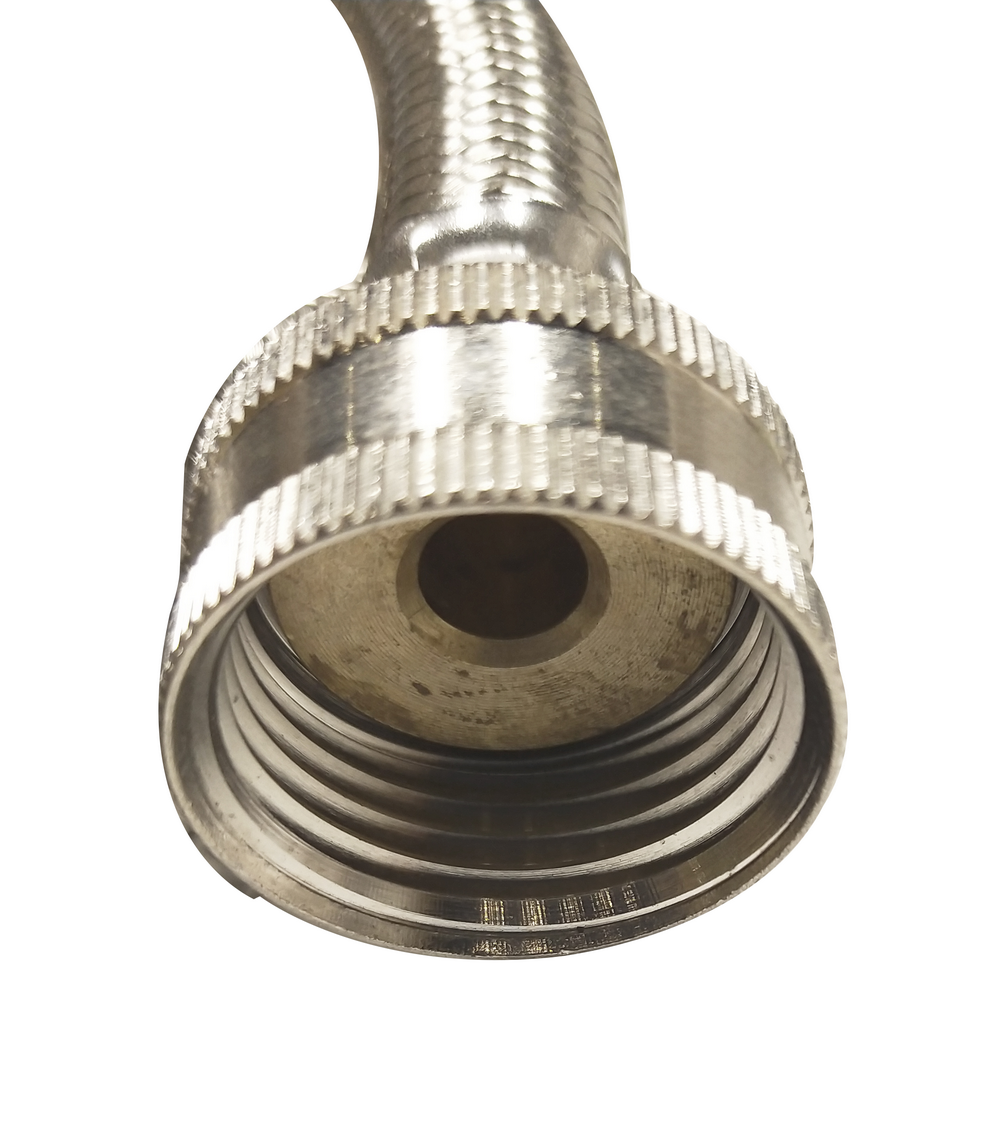

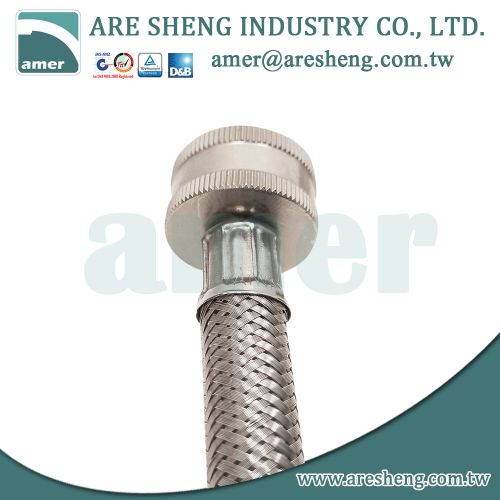

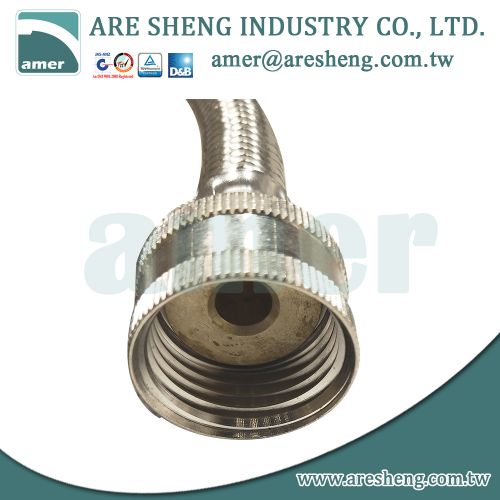

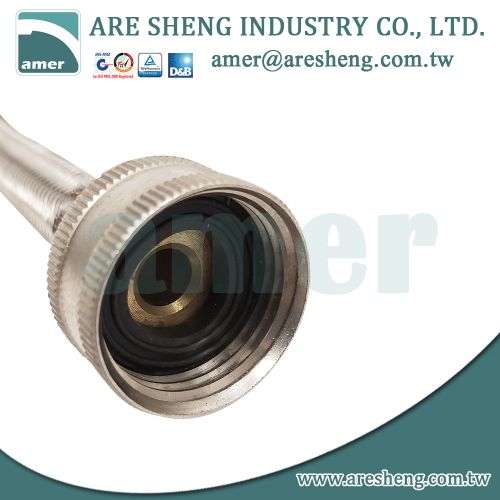

- Nut: 3/4"F.H. brass nut with brass insert


washing machine connector brass nut

- Inner tube:
(A) White PVC tube with coated nylon fiber

for extra protection (more durable)
*Non-toxic PVC core coated with
multi-filament braided nylon
with outer clear vinyl shell

(B) Clear PVC tube

drawing of PVC inner tube for washing machine supply line

 Part No   13A-022-34FH34FH
 Product  Stainless steel washing machine supply line
 Application  Washing machine
 Tubing material  PVC core/ Vinyl shell
 Wire Material  Stainless steel 304
 Inlet fitting  3/4” F.H. (Female hose)
 Outlet fitting  3/4” F.H. (Female hose)
 Length  10” – 72” upon your request
 Finish of Nut  Nickel plated
 Flexible  Yes
 Lead free  No
 Temperature test  10°C – 20PSI lasts 5minutes
 10°C – 125PSI lasts 5minutes
 66°C – 20PSI lasts 5minutes
 66°C – 125PSI lasts 5minutes
 Endurance test  Temperature: 82°C
 Pressure increases from 75PSI to 180PSI
 7 times/minutes for 103 cycles
 Burst test  Temperature: 82°C
 250PSI lasts for 30 minutes without problem
Package

Item No. Outlet x Inlet x Length Package Carton
13A-022-34FH34FH12 3/4"FH x 3/4"FH x 12” Bulk 200pcs/0.8cufts
13A-022-34FH34FH16 3/4"FH x 3/4"FH x 16” Bulk 100pcs/0.9cufts
13A-022-34FH34FH20 3/4"FH x 3/4"FH x 20” Bulk 200pcs/1.5cufts
13A-022-34FH34FH24 3/4"FH x 3/4"FH x 24” Bulk 100pcs/1.1cufts
13A-022-34FH34FH36 3/4"FH x 3/4"FH x 36” Bulk 100pcs/1.64cufts
MOQ: 200PCS/ each size
*Should be ordered in full cartons

*Are Sheng Order Policy(Click here)
