Introduction
This is a complete set of 3 handle shower trim kits for Gerber shower valve. An unit includes 3 handle, 3 stems, 3 sleeve, 3 escutcheon, and 3 seats. It comes with traditional 16 point broach stem and handle. Besides, it's easy to install. If you are tired of asking the plumber, try this by yourself at home.
Find the installation instruction here.
- Description
- Feature
- Specification
Part No. D61-002
Product name: Fits Gerber shower rebuild kits -3 handle traditional model
Application: To rebuild Gerber tub and shower valve
Function: Replace the old stem which causes leaking problem

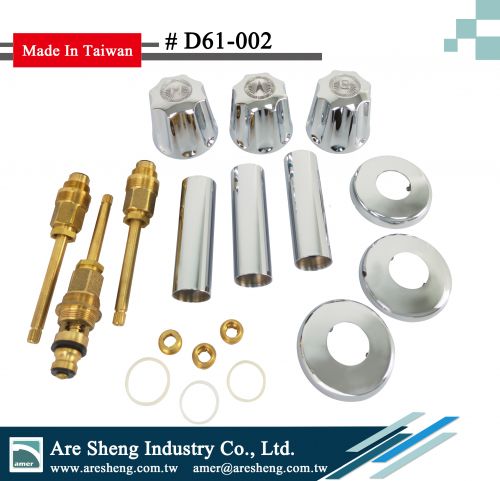

Content: 3 handles, 3 stems, 3 escutcheons, 3 sleeves, 3 brass seats
Finish: Chrome
Each part of the shower rebuild trim set for Gerber Detailed drawing as below.

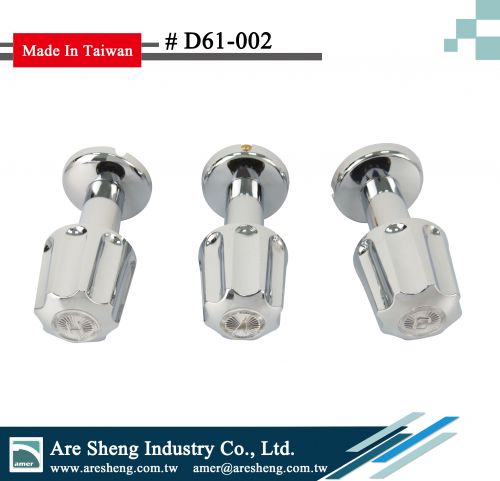

Installation of the 3 handle shower set for Gerber valve
Details of each part > Handle> Stem > Sleeve> Escutcheon > Seat
| Product |
3 handle shower trim kits |
| Item No |
D61-002 |
| Brand |
For Gerber |
| Style |
Traditional type |
| Application |
Installed on Gerber shower valve |
| Function |
Rebuild leaking Gerber shower valve |
| Content |
Handle *3pcs (Hot, Cold, Diverter)
Stem *3pcs (w/ bonnet washers)
Sleeve *3pcs
Escutcheon *3pcs
Faucet Seat *3pcs
|
| Material |
Zinc handles
Brass stems
Zinc escutcheons
Zinc sleeves
Brass faucet seats |
| Finish |
Chrome plated handle
Raw brass color stem
Chrome plated sleeve
Chrome plated escutcheon
Raw brass color faucet seat |
| Lead Free |
No |
| Part |
Handle |
| Item No. |
14-021LH (Long broach -hot)
14-021LC (Long broach -cold)
14-021LD (Long broach -diverter)
14-021HS (Short broach -hot)
14-021CS (Short broach -cold)
14-021DS (Short broach -diverter) |
| Brand |
For Gerber |
| Application |
Installed on Gerber stem (16pt)
 |
| Material |
Zinc |
| Finish |
Chrome plated |
| Broach |
16 point broach
 |
| Content |
Handle with hot index button*1pc
Handle with cold index button*1pc
Handle with diverter index button*1pc
Each handle with C.P. brass screw
*Clear plastic index button
 |
| Dimension |
Long broach
 |
| Dimension |
Short broach
 |
| Part |
Stem |
| Item no. |
15-GB01 (diverter stem)
15-GB02 (hot/cold stem) |
| Brand |
For Gerber |
| Application |
Installed on Gerber shower valve |
| Material |
Brass |
| Finish |
Raw brass color |
| Broach |
16 point
 |
| Content |
Diverter stem *1pc
Hot/Cold stem *2pcs
With bonnet washers
 |
| Dimension |
Hot and Cold: 5-1/4”
Diverter: 5-3/4”
 |
| Remark |
Counterclockwise open
Clockwise close
 |
| Part |

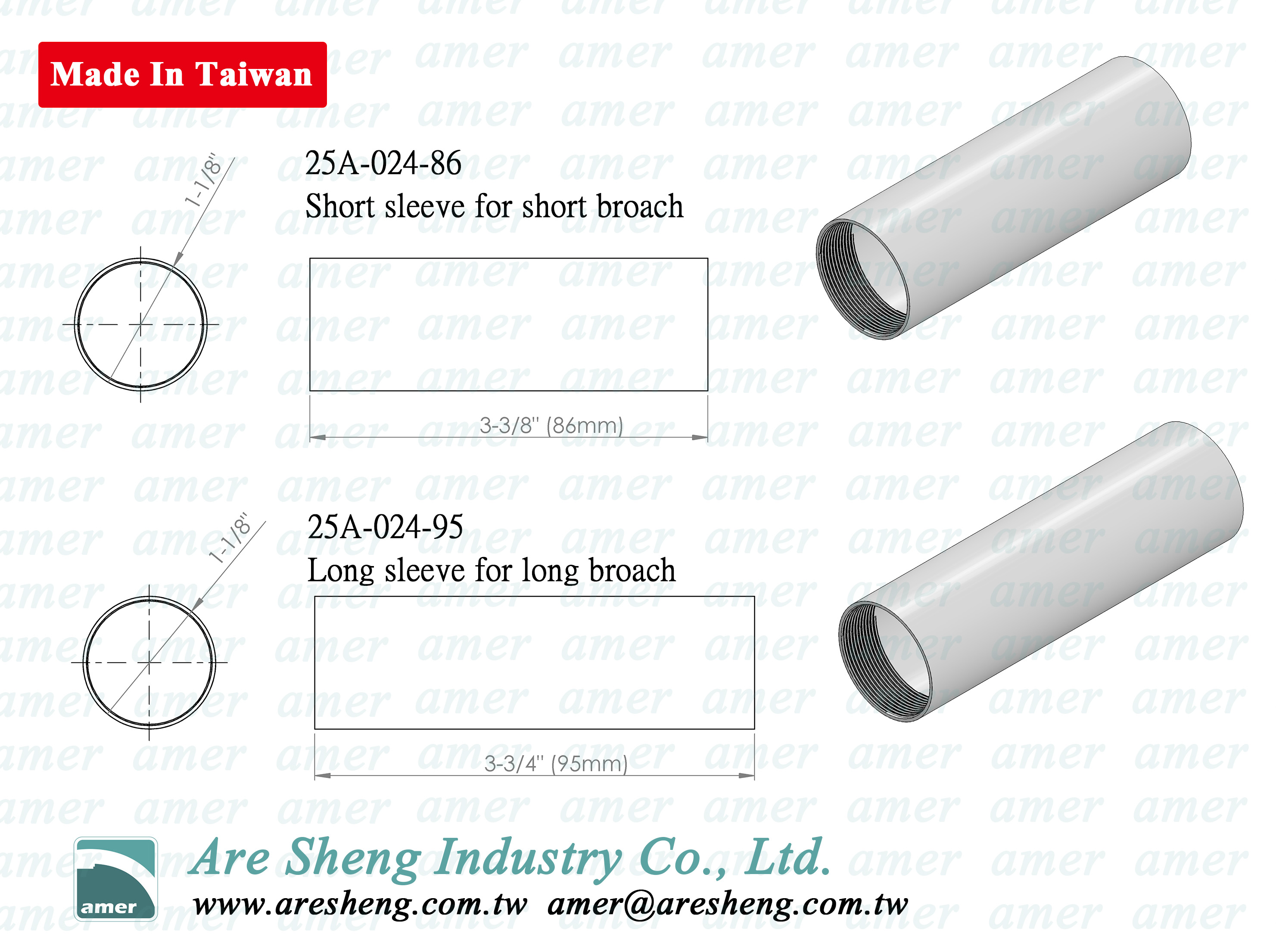

Sleeve |
| Item no. |
25A-024S |
| Brand |
For Gerber |
| Application |
Screw on Gerber stem
|
| Material |
Zinc |
| Finish |
Chrome plated |
| Content |
Sleeve * 3pcs
 |
| Dimension |
OD: 1-1/8”
Short sleeve: 86mm for short broach handle
Long sleeve: 95mm for long broach handle
 |
| Thickness |
About 1mm |
| Part |
Escutcheon/ flange |
| Item no. |
25A-024E |
| Brand |
For Gerber |
| Application |
Decorative flange on wall
|
| Material |
Zinc |
| Finish |
Chrome plated |
| Content |
Escutcheon * 3pcs with screws
 |
| Dimension |
OD: 2-3/4"
ID: 1-1/8"
H: 1/2"
 |
| Part |
Faucet valve seat |
| Item no. |
B30-023 |
| Brand |
For Gerber |
| Application |
Installed on Gerber shower valve
 |
| Material |
Brass |
| Finish |
Raw brass color |
| Content |
Brass faucet seat *3pcs
 |
| Dimension |
Thread 5/8"-20T |

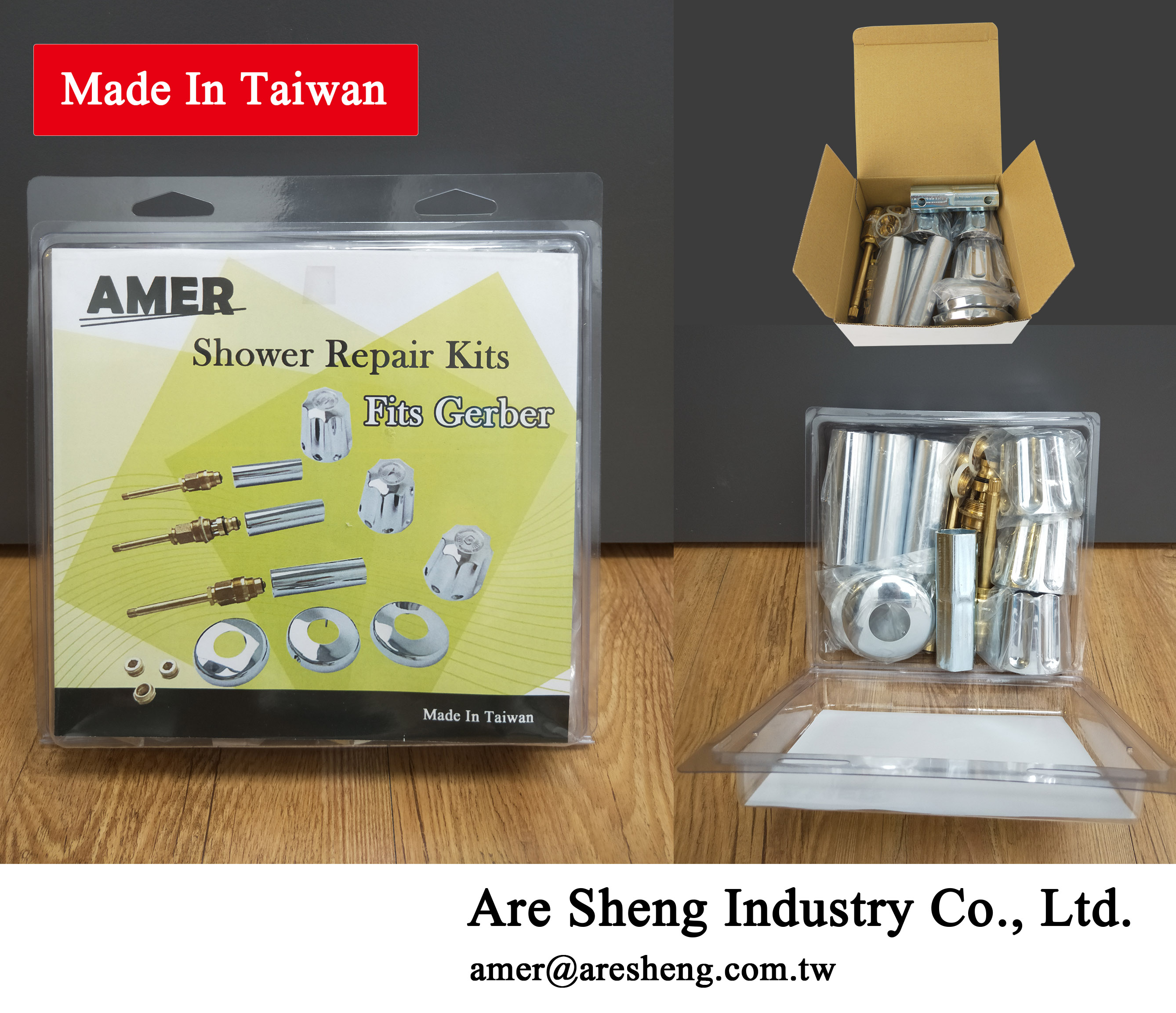

Package
Each set packed in white box
10sets/27kgs/28kgs/2cufts .... box package
Also available in clamshell, color box package
* Label on white box
