Lever handle waste valve with overflow port

Model No. D79-012
Category:Sink strainer & waste valve
Tag:
Introduction
  • Description
  • Feature
  • Specification
3-1/2" Waste valve

Minimum Order Quantity
500pcs

Main Target market
USA, Canada, Brazil, Mexico, Colombia, Argentina,
Peru, Venezuela, Chile, Ecuador, Guatemala,
Dominican Republic, Honduras, Paraguay,
Nicaragua, El Salvador, Costa Rica, Panama,
Uruguay, Puerto Rico

Product Specification
 Product Code Size   Product name Main Material
D79-008 3-1/2"  Waste valve Brass
 Color Place of shipment   Country of Origin  Lead time
 Nickel plated Taiwan   Taiwan   45 days

Contacts
 Contact person Email  Telephone  Fax
 Gary Lee [email protected]  886-4-7510666  886-4-7510699

•Part No. D79-008
•For 3-1/2” sink opening
•Heavy duty cast rough brass body- nickel plated
•Stainless steel lever handle with heat-resistant plastic grip
•3-1/2” Snap-in removable flat grid strainer
•2” MIP x 1-1/2” FIP drain outlet
•1-1/4” NPSM overflow port equipped with cap and sealing washer
•1-1/2” MIP adapter is available upon request
•Apply in the majority of US hospitals, schools, restaurants, industrial •facilities, or other commercial plumbing facilities.
* Check the material of each part in the feature page

D79-008-lever handle waste valve with overflow port   D79-008-lever handle waste valve with overflow 01

feature 01- twist handle waste valve - heavy duty construction
feature 02- twist handle waste valve - SUS304 strainer
feature 03- lever handle waste valve - SUS304 handle
feature 04- lever handle waste valve - easy operation
feature 05- twist handle waste valve - overflow port

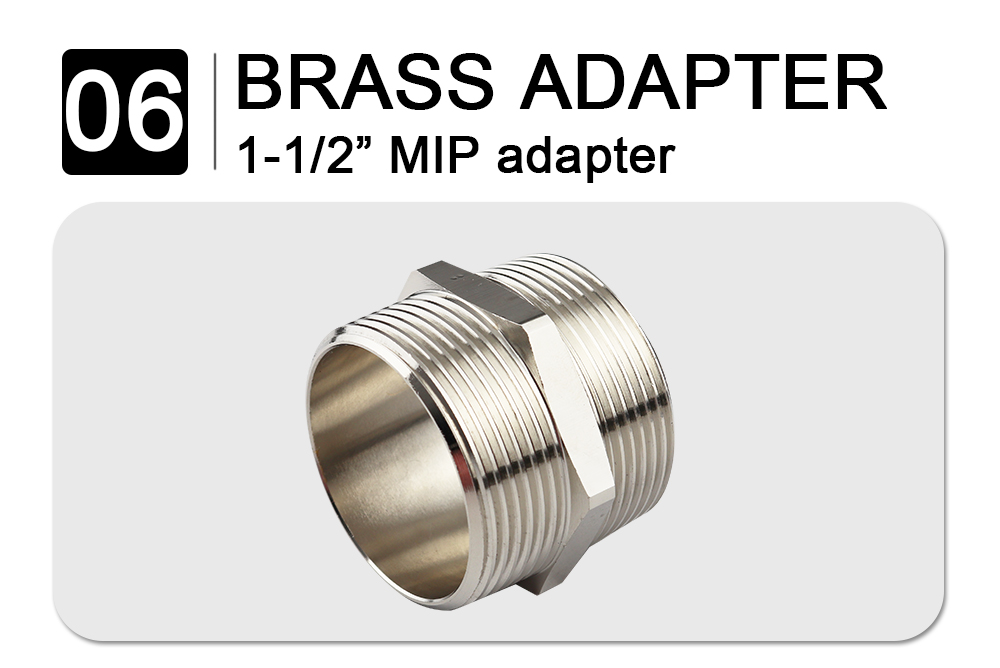

feature 06- twist handle waste valve -brass adapter
waste valve lever handle explosion drawing
Seq Part Spec Material
1 Snap-in strainer 3-1/2” SUS304
2 Face flange 3-1/2” SUS304
3 Washer 3-1/2” Paper
4 Gasket 3-1/2” Rubber
5 Plunger Dia: 2-3/16” Nickel plated brass
6 Plunger O-ring OD: 2-3/16” Rubber
7 Drain body Dia: 4-7/16”
Height: 4-1/2”
Outlet: 1-1/2”FIP & 2”MIP		 Nickel plated brass
8 Sleeve OD: 15/16” Nylon
9 Ball OD: 3/4” Brass
10 Sleeve OD: 3/4” Nylon
11 O-ring OD: 1-1/16” Rubber
12 Handle nut 1”UNS Brass
13 Handle Dia: 3/8”
Length: 12-1/4”		 Stainless steel
14 Handle grip   Heat-resistant plastic
15 Sealing washer OD: 1-1/2” Rubber
16 Overflow cap 1-1/4”NPSM Brass


commercial waste valve drawing
